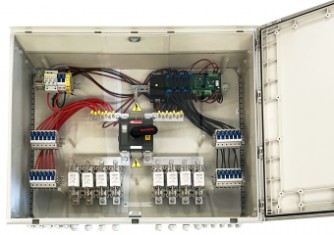

ITSMV Series - String Monitoring Reverse
Photovoltaic Reverse Box For Centralized Inverter Revamping With Monitoring
Description:
Required when it is necessary to replace centralized inverter with string inverter. The AC side remains unchanged. The total input current on the positive and negative side is divided into a number of currents equal to the number of input strings of the string inverter.
Technical Features:
- Multi inputs with fuses up to 250 Amps
- Multi outputs to manage maximum 24 MPPT
- SPD T2 or T1 + T2 discharger
- Possibility to include a SMU (ITSMV series)
- Manufactured with IP65 protection
- Polyester box reinforced with fiberglass
- Available with arc detection option
Download
Datasheet
