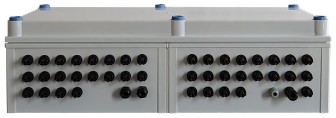

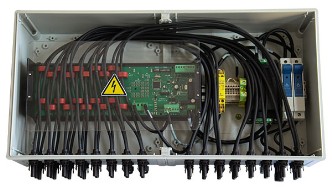

ITSMR Series - String Monitoring Retrofit
Photovoltaic String Combiner Box For Retrofit of Existing Plants With Monitoring
- KERNEL
Sistemi’s SMUs with hall sensors
- Connection from 4 to 24 strings
- Input currents as high as 40 Amps
- Communication options include rs485 serial, fiber optic, or wireless with Mesh technology
- SPD signal discharger
- Polyester box reinforced with fiberglass
- Strings connected with MC4
- Manufactured with leading brand components
- Manufactured with IP65 protection
- Tailored to specific requirements
- KERNEL
Sistemi’s SMUs with hall sensors
Download
Datasheet
