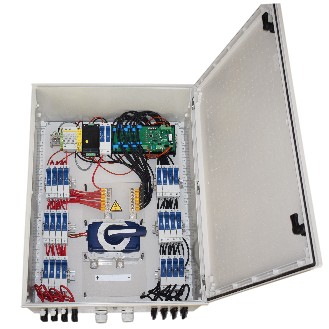

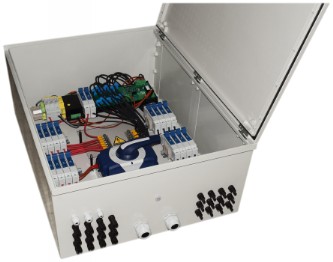

ITSMB Series - String Monitoring Box
Photovoltaic String Combiner Box With Monitoring
- KERNEL Sistemi’s SMUs with shunt technology or hall effect sensors
- Communication options include rs485 serial, optical fiber, or wireless with Mesh technology
- Capable of connecting from 4 to 24 strings
- Capable of handling input currents as high as 50 Amps per channel
- SPD T2 or T1 + T2 discharger and signal arrester when required
- Polyester box reinforced with fiberglass
- Strings connected with MC4 connectors or cable glands
- Manufactured with leading brand components
- Manufactured with IP65 protection
- Available with motorized switch for local or remote opening/closing
- Available with arc detection option
- Tailored to specific requirements
Download
Datasheet
