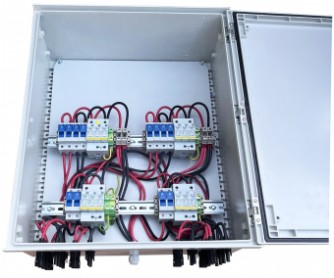

ITSCP Series - String Combiner Protector
Photovoltaic
String Combiner Box For String Inverter Protection Without Monitoring
- Complete protection of string inverter inputs
- Fuses on both the positive and negative side
- Multi-input and multi-output solutions
- SPD T2 or T1 + T2 discharger
- Multi switch disconnectors up to 63 Amps DC
- Available at 1000 VDC and 1500 VDC
- Manufactured with IP65 protection and IK10 impact protection rating
- IP68 valve
- Polyester box reinforced with fiberglass
- Strings connected with MC4 or cable glands
- Manufactured with leading brand components
- Available with arc detection option
- Tailored to specific requirements
Download
Datasheet
